Ampd Brothers
ACE-S Cargo Max Electric Bike
Warranty
Here at EV Speed we stand behind all our products regardless of where you live so you can rest assure knowing your purchase comes backed by a renowned Aussie Brand.
Warranty Periods:
- 2 Year's Adult Electric Bikes
- 1 Year on Batteries
- 1 Year on Kids Electric Bikes
- 1 Year on Electric Motorcycles - Surron & RFN
- 1 Year on Vortex Skateboards
- 3 Month's on any Parts, Accessories & Bike Trailers*
Our Extensive Warranty applies Australia Wide for all our products. *T&C's Apply for full information on our Warranty.
Oxenford Gold Coast QLD Mega Store
Please call to confirm stock 0427 727 081
Our trading hours are Monday to Friday from 9.30am to 5pm, and Saturday to Sunday from 10am to 4pm.
We offer convenient delivery for all e-bikes anywhere across the Gold Coast within a 20km radium of our Oxenford store, with delivery pricing starting from $150.
If you wish to have your bike ready to ride away, we can have it fully assembled, safety checks, battery charged and set up so your bike is ready to go straight away. Assembly packages start from $99 - $199 for e-bikes and $199 - $299 for e-moto depending on the model and set up requirements.
Key Features
Product Overview

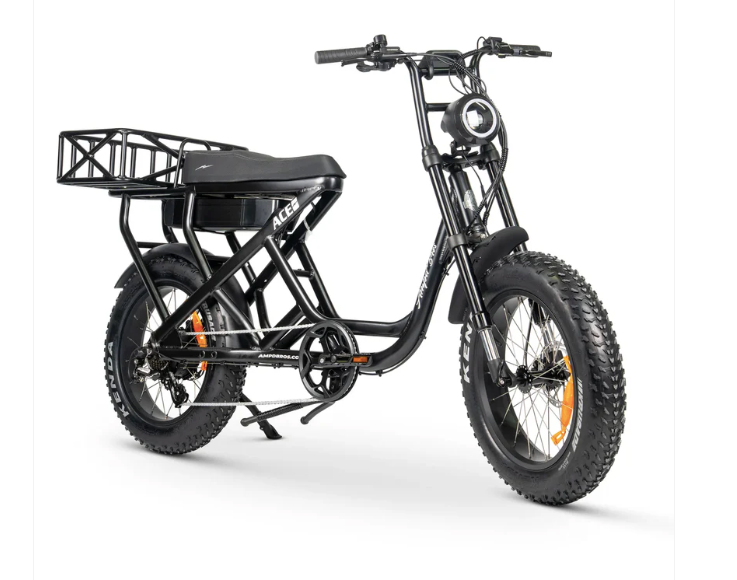

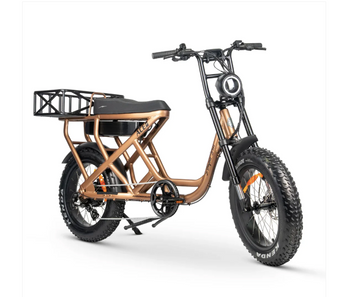

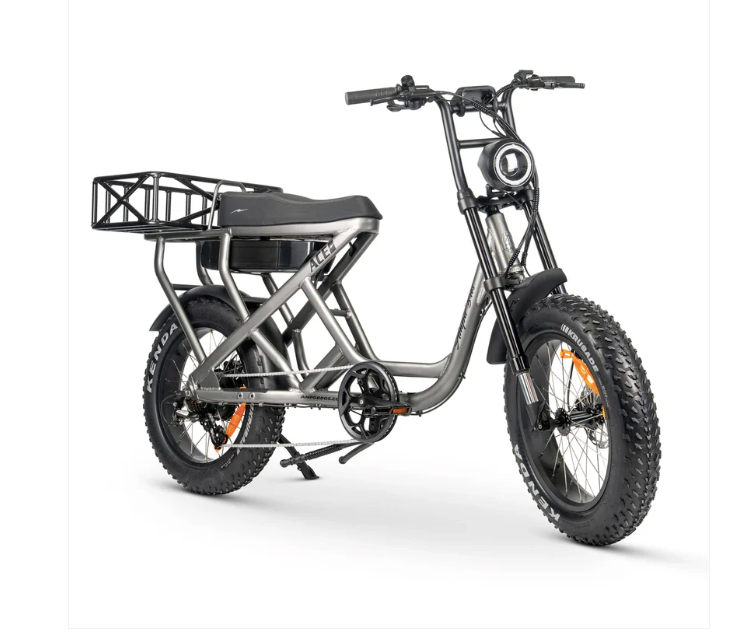

Introducing the ACE-S Cargo MAX – Built for More!
The ACE-S Cargo MAX takes everything you love about the ACE range and supercharges it for ultimate cargo-hauling capability. Designed with an integrated extra-large rear rack, this powerhouse e-bike is built to carry more gear, more weight, and even additional passengers—all while delivering the same rugged performance you expect from Ampd Bros.
Equipped with front suspension forks, the ACE-S Cargo MAX offers a smoother, more stable ride across all terrains. At its heart, the high torque 80N.M Bafang Rear Hub Motor delivers serious power, letting you cruise at higher speeds with ease.
Crafted with a sleek Low Bar Step-Through frame, the ACE-S Cargo MAX is all about accessibility and comfort, making it perfect for riders of all sizes. With its heavy-duty construction, this bike is designed for adventure, work, and everything in between.
Since its debut in 2019, the ACE Bike series has been Australia’s favourite fat tyre bike, and the Cargo MAX continues that legacy. Featuring a Shimano 7-Speed Derailleur, vibrant colour options, and our GEN3 Aluminium Battery with 21700 cells (30% larger than competitors), this bike is engineered for maximum power, efficiency, and safety.
The Custom Master Control unit enhances motor performance with advanced algorithms, seamless light controls, and improved diagnostics. Powered by Bafang’s High Torque Motor, the ACE-S Cargo MAX is ready to tackle any journey—whether you’re commuting, exploring, or hauling heavy loads.
More Cargo. More Power. More Adventure.
The ACE-S Cargo MAX is ready to roll. Are you?
What's New for ACE Cargo MAX?
- Extended to Integrate a Large Rear Rack
- 52V 20AH Battery
- Micro Intelligent Colour Display
- Front Suspension Fork
- Ampd Bros Signature Headlight
- Epic Metallic Colours for 2025
The ACE Cargo ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE Cargo handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Join the ACE revolution and unlock limitless possibilities with the ACE-S Electric Fat Tyre Bike – your ticket to exhilarating adventures awaits!
ACE SERIES 4
Range
- Ace Mini Models 40km+
- Ace Standard Models 60km+
- Ace Plus/Cargo Models 80km+
Top Speed (Off Road Private Property)
- All Models Restricted to 25km/h
- Ace Mini Up to 35km/h (When modified for Private Property Use)
- Standard Up to 40km/h (When modified for Private Property Use)
- Ace Plus/Cargo 45km/h (When modified for Private Property Use)
Battery
- Ace Mini 48V / 480Wh, 10AH
- Standard 52V / 780Wh, 15AH
- Plus/Cargo 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor
- All Models Bafang Rear Hub Restricted to 250W High Torque Motor
- Ace Mini 500W / Peak 750W+ (When modified for Private Property Use)
- ACE Standard 500W / Peak 750W+ (When modified for Private Property Use)
- ACE Plus/Cargo 750W / Peak 1,000W+ (When modified for Private Property Use)
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
- Overall Length 1,470 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
