Ampd Brothers
ACE-X Mini PRO Electric Bike
Warranty
Here at EV Speed we stand behind all our products regardless of where you live so you can rest assure knowing your purchase comes backed by a renowned Aussie Brand.
Warranty Periods:
- 2 Year's Adult Electric Bikes
- 1 Year on Batteries
- 1 Year on Kids Electric Bikes
- 1 Year on Electric Motorcycles - Surron & RFN
- 1 Year on Vortex Skateboards
- 3 Month's on any Parts, Accessories & Bike Trailers*
Our Extensive Warranty applies Australia Wide for all our products. *T&C's Apply for full information on our Warranty.
Oxenford Gold Coast QLD Mega Store
Please call to confirm stock 0427 727 081
Our trading hours are Monday to Friday from 9.30am to 5pm, and Saturday to Sunday from 10am to 4pm.
We offer convenient delivery for all e-bikes anywhere across the Gold Coast within a 20km radium of our Oxenford store, with delivery pricing starting from $150.
If you wish to have your bike ready to ride away, we can have it fully assembled, safety checks, battery charged and set up so your bike is ready to go straight away. Assembly packages start from $99 - $199 for e-bikes and $199 - $299 for e-moto depending on the model and set up requirements.
Key Features
Product Overview
Big Comfort. Big Capability. Compact by Design.

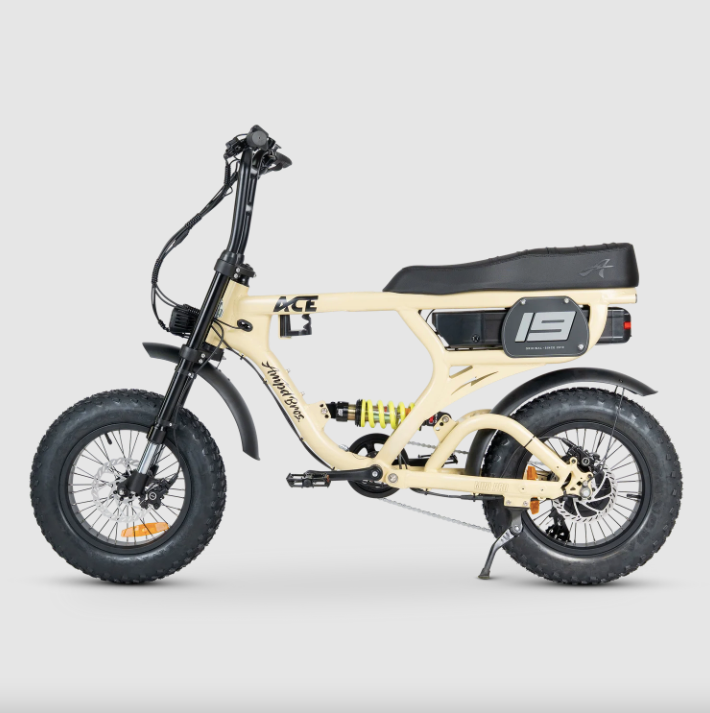

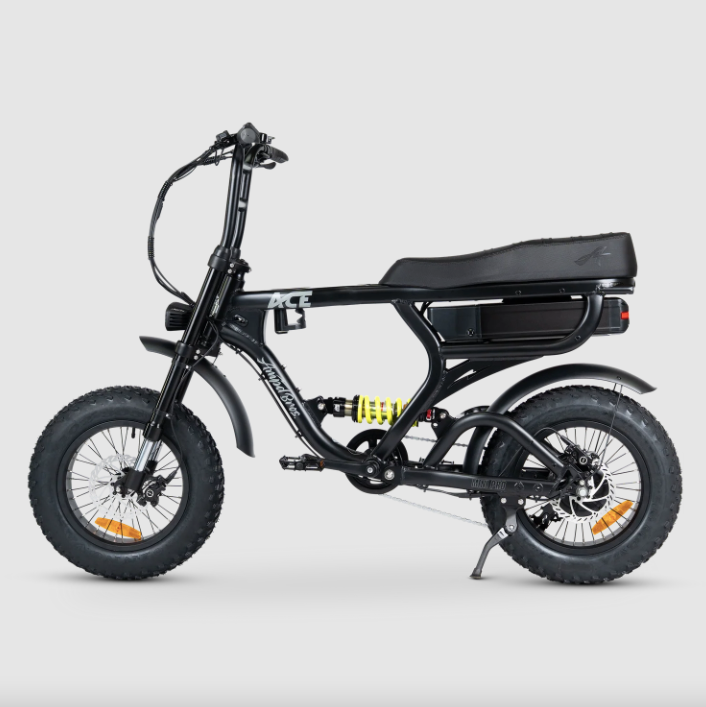

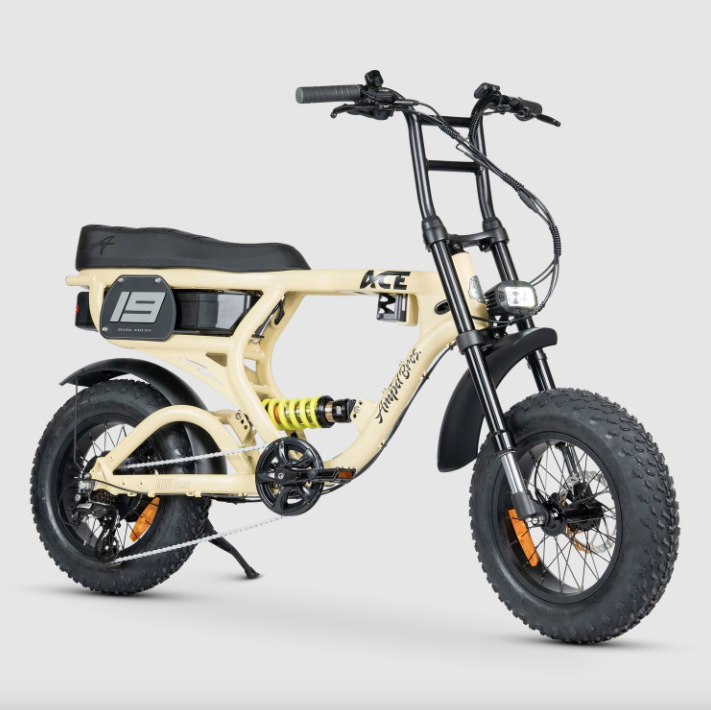

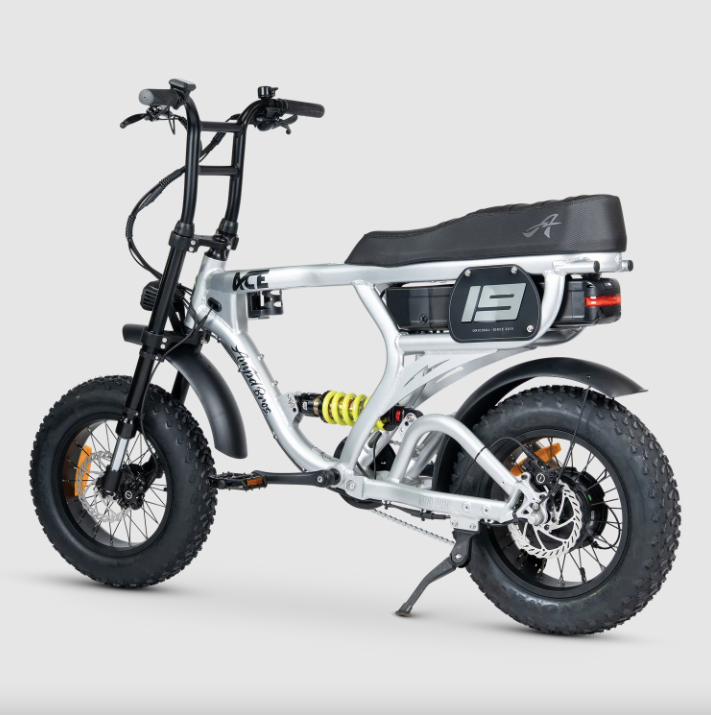

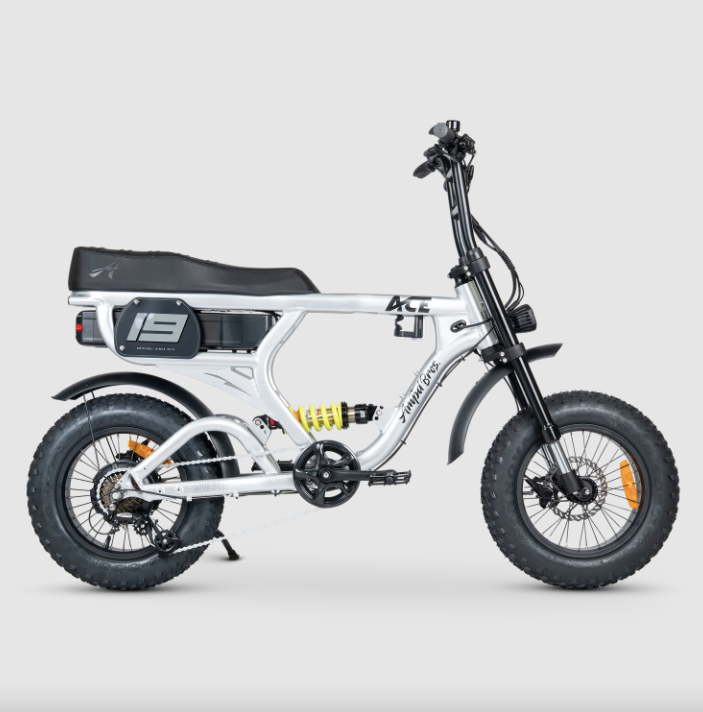

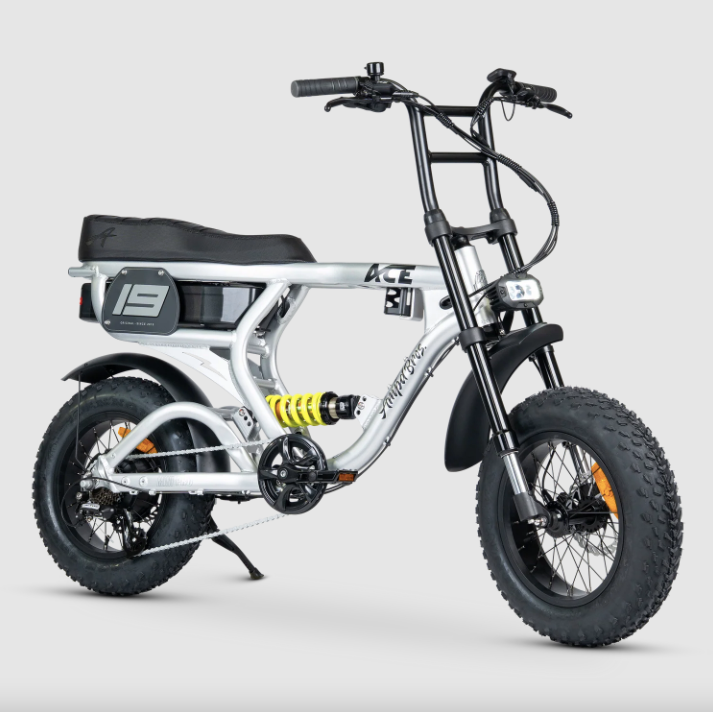

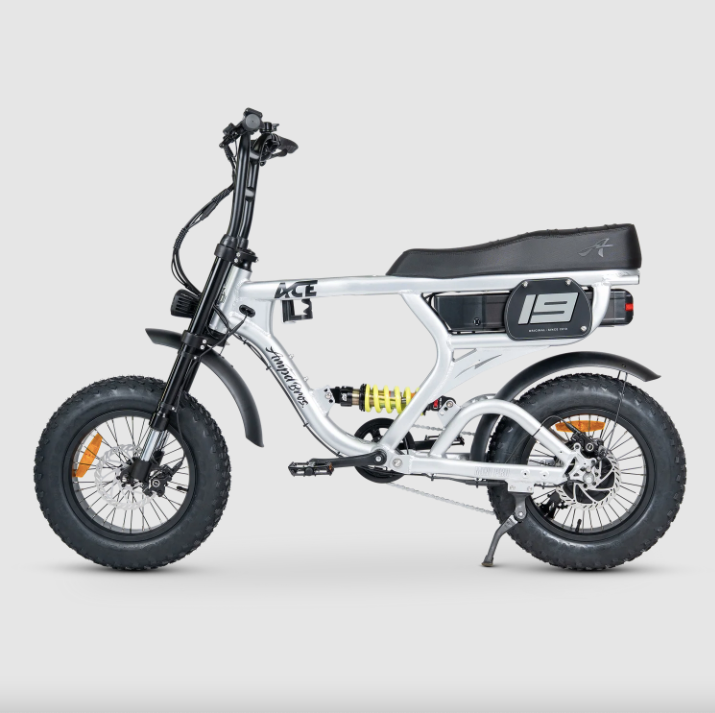

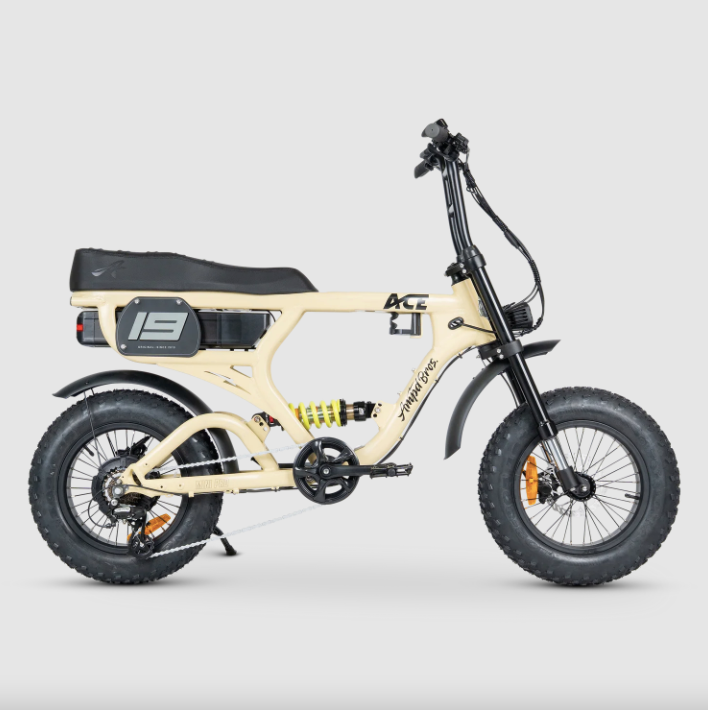

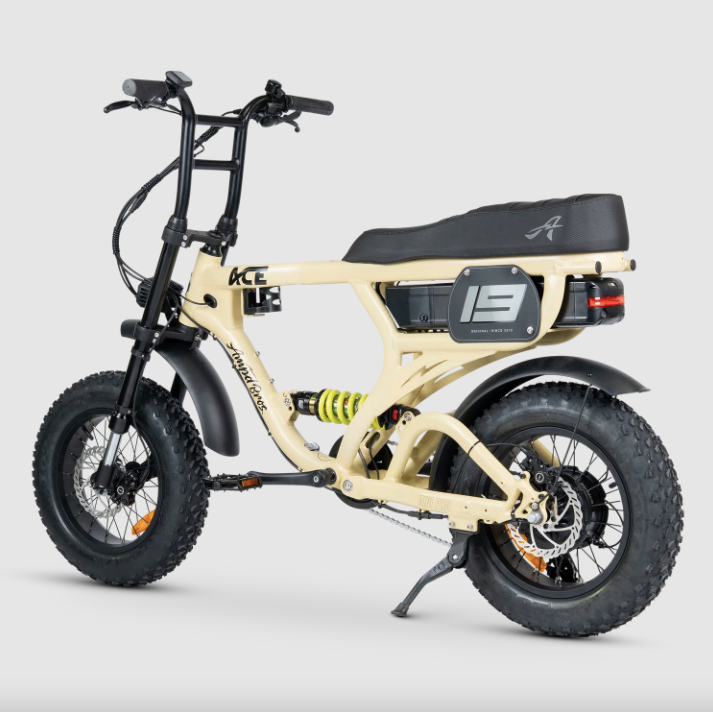

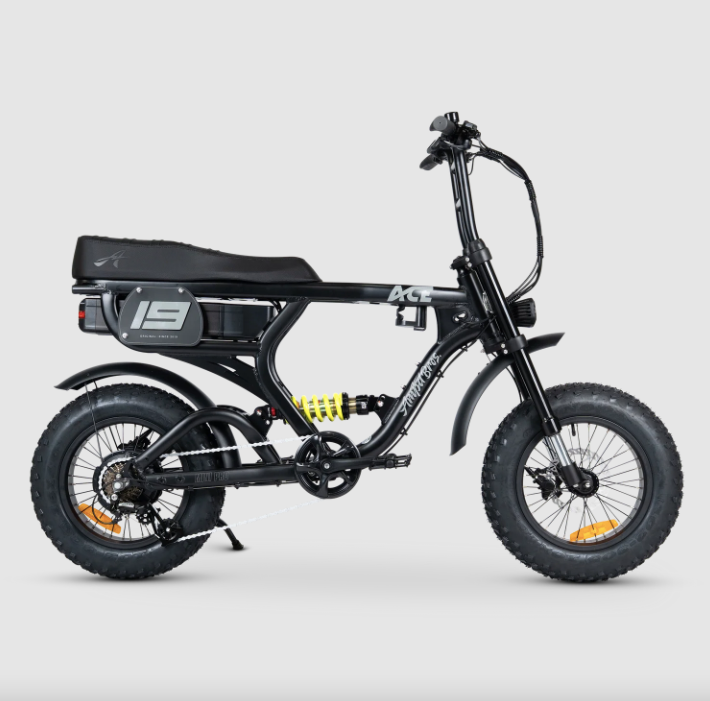

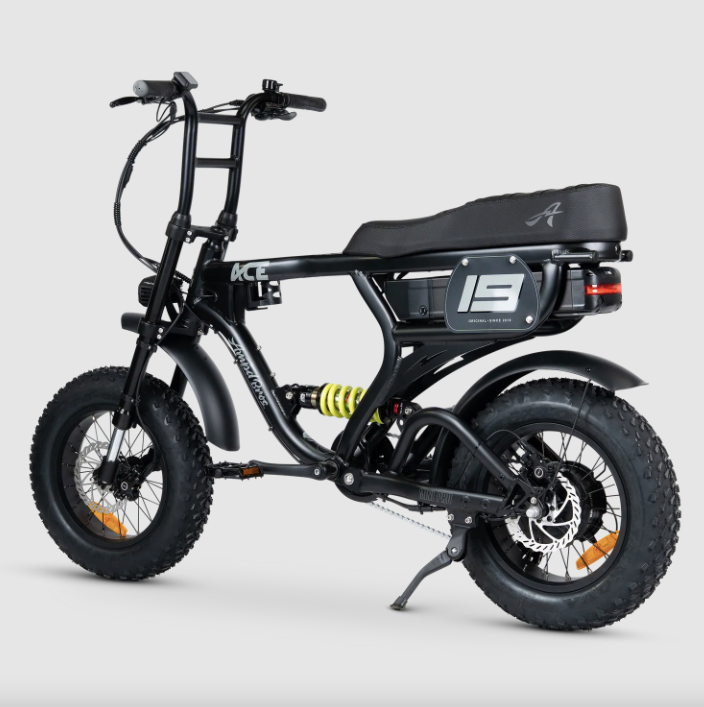

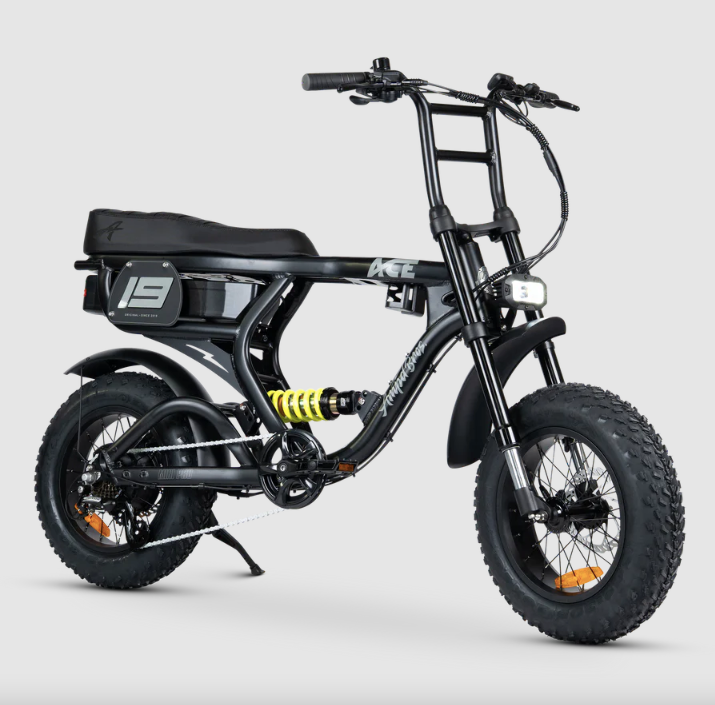

Introducing the ACE-X Mini PRO — the upgraded compact electric cruiser built for riders who want more comfort, more control, and more adventure in every ride. Small in frame but huge in performance, the PRO version takes the legendary ACE Mini platform and enhances it with front and rear suspension plus a Shimano 7-Speed drivetrain for the smoothest ride yet.
Compact Size, Premium Ride
The ACE-X Mini PRO is designed for riders who want the agility of a compact eBike without sacrificing capability. Its lightweight low-step frame makes it easy to ride, store, transport, and manoeuvre, whether you’re cruising the coastline, navigating the city, or loading it into your caravan for the weekend getaway.
Perfect for teens and adults alike, the Mini PRO delivers serious attitude in a compact package.
Upgraded PRO Suspension System

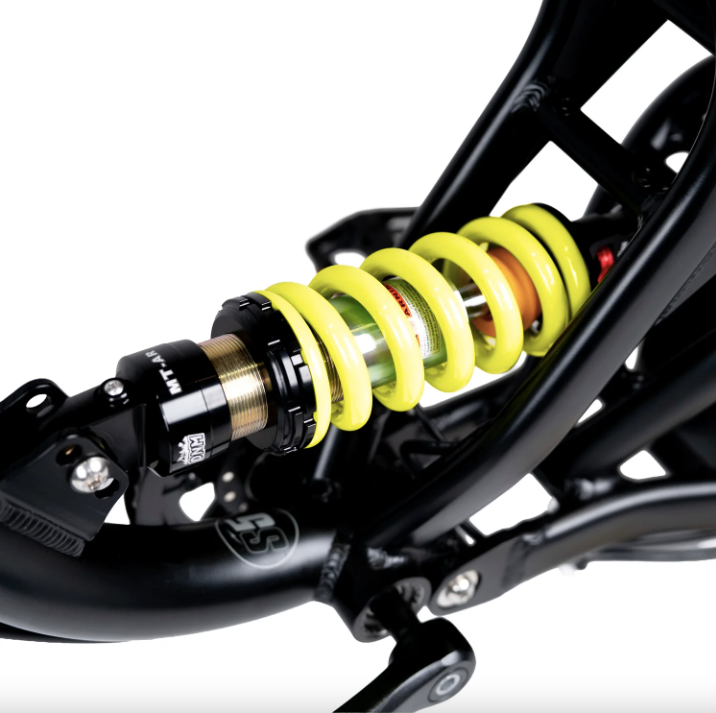

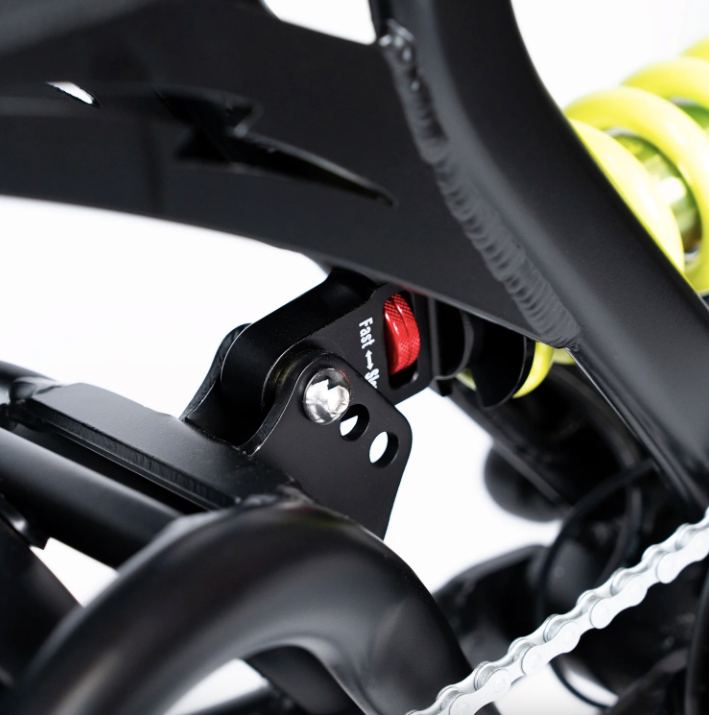

What sets the ACE-X Mini PRO apart is its premium dual suspension setup. Equipped with a front suspension fork and a high-performance rear DNM suspension shock absorber, the PRO delivers a smoother, more controlled ride across rough roads, bike paths, beach tracks, and urban terrain.
Combined with its chunky 16x4” fat tyres, the Mini PRO absorbs bumps with ease while maintaining exceptional grip and stability wherever you ride.
Power Meets Precision
Powered by a High Torque Bafang Rear Hub Motor, the ACE-X Mini PRO delivers effortless acceleration and responsive performance up to 25km/h. Paired with a removable 15AH Samsung Lithium Battery, riders can enjoy up to 60km of range on a single charge.
The addition of a Shimano 7-Speed transmission gives riders greater versatility and control, allowing you to tackle hills, longer rides, and changing terrain with confidence.
Built for Confident Everyday Riding

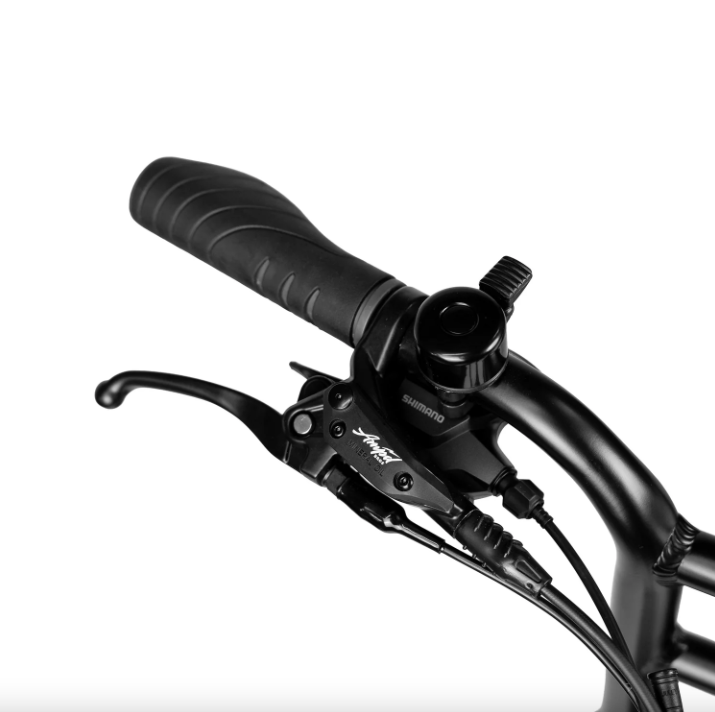

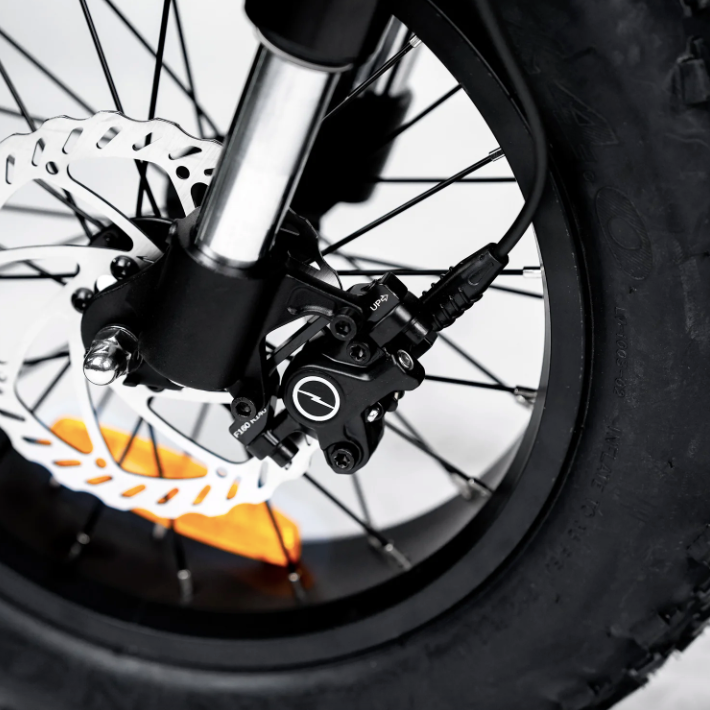

Hydraulic Disc Brakes provide reliable stopping power in all conditions, while the integrated high-power LED headlight keeps you visible when riding in low light. The colour Micro LCD Display gives you all your essential ride data at a glance, including speed, battery level, and pedal assist settings.
Practical, Versatile, Ready for Adventure
Every ACE-X Mini PRO includes a durable lightweight rear aluminium basket at no extra cost, perfect for carrying everyday essentials or weekend gear. Looking to ride with a passenger? Simply remove the basket and upgrade to an optional extended dual seat for even more versatility.
Designed for Riders Who Want More
The ACE-X Mini PRO blends compact convenience with premium ride comfort, making it the ideal choice for commuters, cruisers, campers, and weekend explorers alike. Stylish, capable, and seriously fun to ride, this is compact electric freedom without compromise.
Reminder: Always check with your local authority regarding where and how electric bikes like the ACE Mini can be ridden safely and legally in your area.
ACE SERIES 4
Range
- Ace Mini Models 40km+
- Ace Standard Models 60km+
- Ace Plus/Cargo Models 80km+
Top Speed (Off Road Private Property)
- All Models Restricted to 25km/h
- Ace Mini Up to 35km/h (When modified for Private Property Use)
- Standard Up to 40km/h (When modified for Private Property Use)
- Ace Plus/Cargo 45km/h (When modified for Private Property Use)
Battery
- Ace Mini 48V / 480Wh, 10AH
- Standard 52V / 780Wh, 15AH
- Plus/Cargo 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells

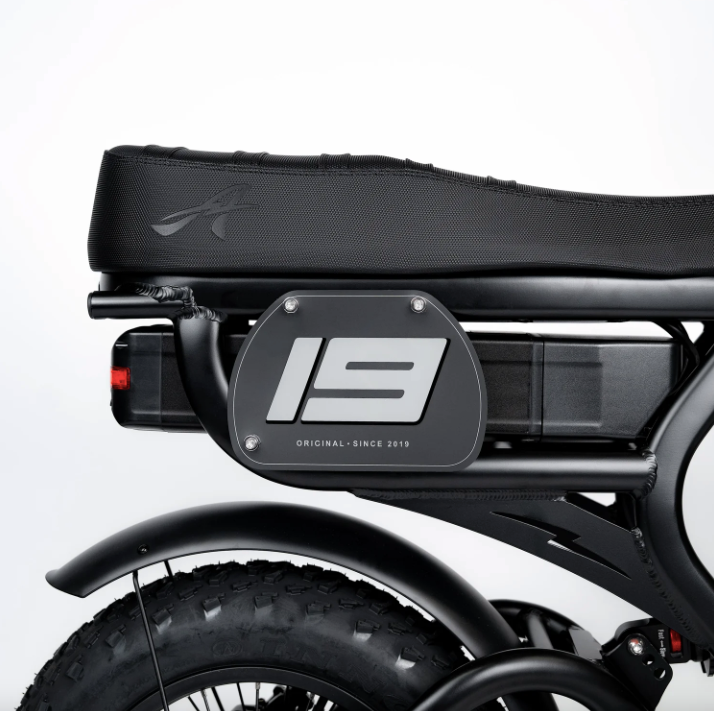

- Battery is removable and can be charged in bike or separately.
Motor
- All Models Bafang Rear Hub Restricted to 250W High Torque Motor
- Ace Mini 500W / Peak 750W+ (When modified for Private Property Use)
- ACE Standard 500W / Peak 750W+ (When modified for Private Property Use)
- ACE Plus/Cargo 750W / Peak 1,000W+ (When modified for Private Property Use)
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS

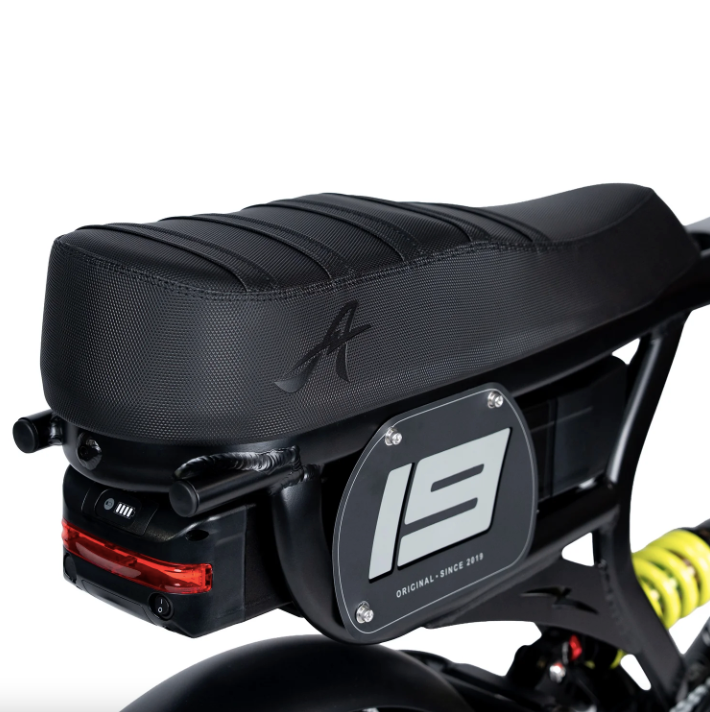

- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED Headlight with DRL

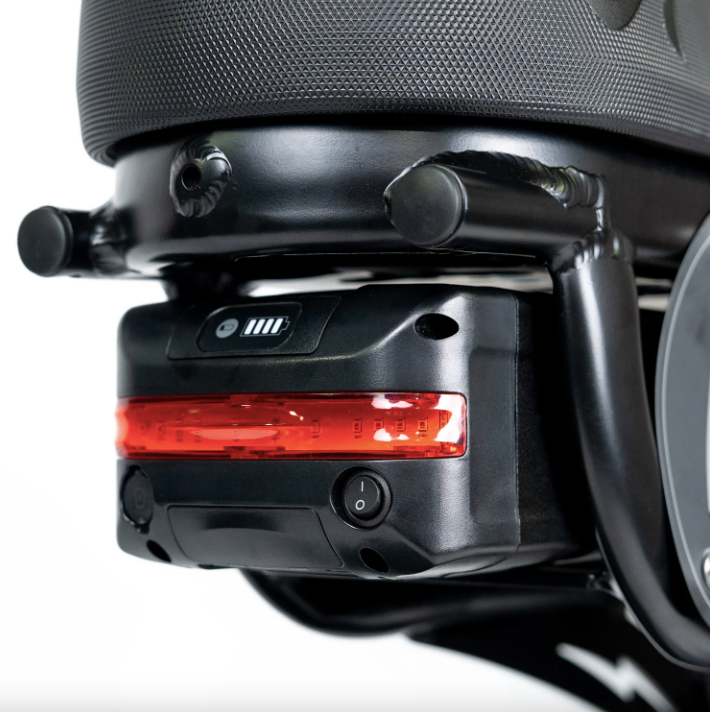

- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- Ace Mini Ampd Bros Hydraulic with 160mm Disc
- Ace Standard/Plus/Cargo Tektro Hydraulic with 180mm Disc
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Ace Mini Transmission Single Fixed Speed (No Shifter/Derailleur)
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance & Rust Resistant
Construction

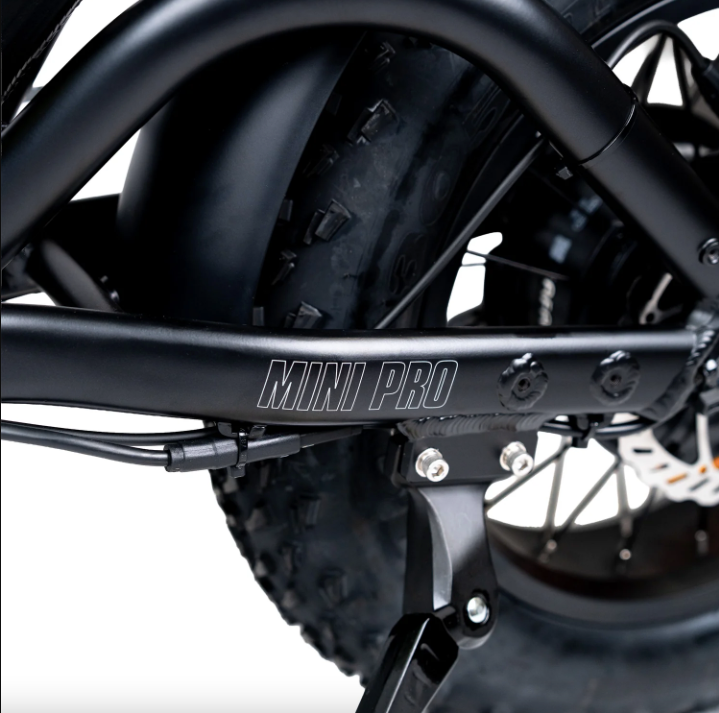

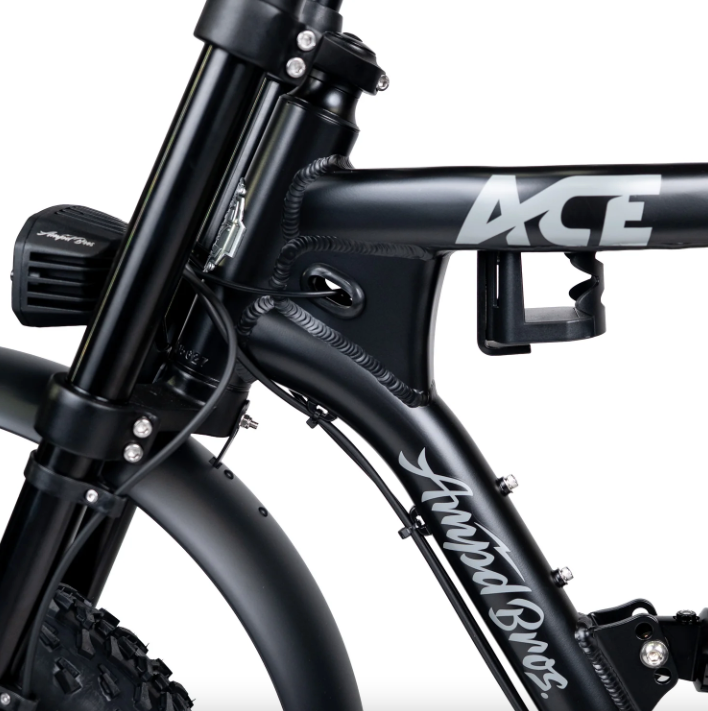

- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Mini & Standard Models No Suspension
- Plus+ Models Front Custom Tuned Adjustable Fork
- Cargo Models Front Independent Suspension Fork (Non Adjustable)
Wheels & Tyres
- Ace Mini 16x.40" Innova Mud Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 5-6hrs 10Ah Batteries with Standard 2A Charger
- 7-8hrs 15Ah Batteries with Standard 2A Charger
- 9-10hrs 20Ah Batteries with Standard 3A Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Ace Mini Dimensions
- Overall Length 1,470 mm
- Handlebar Height 1040 mm
- Handlebar Width 660 mm
- Seat Height 770 mm Fixed Height
- Seat Length 370 mm
- Ground Clearance 190 mm
- Wheel Base 990 mm
- Rider Height Ideal for Riders up to 170cm Tall
Weights
- N.W of 10Ah Battery 3.2kg
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- N.W of ACE Mini + Battery 29 kg
- N.W of ACE Cargo + Battery 40.5 kg
- Max Loading 180 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
